📋 Advanced Workflows (Queries 8)

Query 8: Patron Checkout Transaction

Scenario: Graduate student David checks out ITEM007 (Japanese kimono) for costume design research. Librarian Emily processes the checkout as a single atomic transaction.

Business Need: Ensure all checkout steps succeed together or roll back entirely to prevent data inconsistency

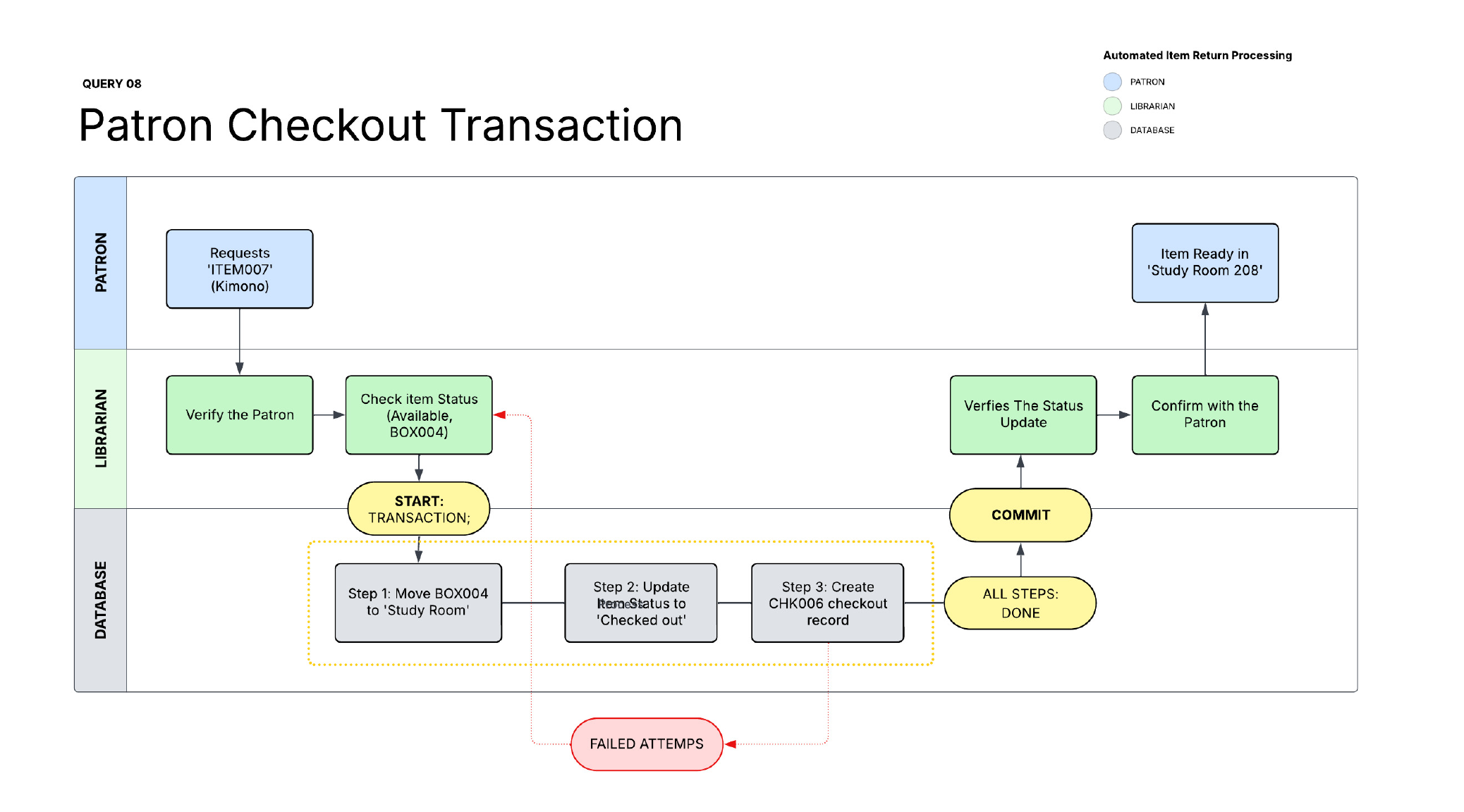

Transaction Workflow

ACID Transaction Components:

• Atomicity: All three steps succeed or none do
• Consistency: Maintains referential integrity across tables
• Isolation: Prevents concurrent checkout conflicts
• Durability: Changes persist after COMMIT

Implementation

Step 1: Verify Patron

-- Checking David as Patron
SELECT Patron_ID, Patron_FName, Patron_LName, Department
FROM PATRON
WHERE Patron_Fname = 'David';

Step 2: Check Item and Box Details

-- Check item and patron details
SELECT
    i.Item_ID,
    isn.Item_Status_Name,
    b.Box_ID,
    l.Room
FROM ITEM i
JOIN BOX b ON i.Box_ID = b.Box_ID
JOIN LOCATION l ON b.Location_ID = l.Location_ID
JOIN ITEM_STATUS_NAME isn ON i.Item_ID = isn.Item_ID
WHERE i.Item_ID = 'ITEM007';

Step 3: Verify Study Room Location

-- Checking the location ID for Study Room
SELECT Location_ID, Room
FROM LOCATION;

Step 4: Execute Transaction (All-or-Nothing)

-- Ensure checkout is atomic - all steps succeed or none do
START TRANSACTION;

-- STEP 1: Move box to study room
UPDATE BOX
SET Location_ID = 6,  -- Study Room 208
    Status_ID = 2,  -- Unavailable--Checked out
    Last_Modified_Date = CURRENT_DATE
WHERE Box_ID = 'BOX004';

-- STEP 2: Update item status
SELECT *
FROM STAFF
WHERE staff_fname = 'Emily';

UPDATE ITEM_STATUS_NAME
SET Item_Status_Name = 'Unavailable--Checked out',
    Description = 'Item checked out to patron',
    Staff_id = 3  -- Emily
WHERE Item_ID = 'ITEM007';

-- STEP 3: Create checkout record
INSERT INTO CHECKOUT_RECORD
(Checkout_ID, Checkout_DateTime, Return_DateTime, Purpose, Staff_id, Box_ID, Item_ID, Patron_ID)
VALUES
('CHK006', '2024-12-13 10:30:00', NULL, 'Costume design reference', 3, 'BOX004', 'ITEM007', 4);

-- All steps succeeded - make changes permanent
COMMIT;

Step 5: Verify Complete Transaction

-- Check checkout record created
SELECT * FROM CHECKOUT_RECORD;

-- Verify all related updates with comprehensive JOIN
SELECT
    cr.Checkout_ID,
    CONCAT(p.Patron_FName, ' ', p.Patron_LName) AS Patron,
    i.Item_ID,
    l.Room AS Box_Location
FROM CHECKOUT_RECORD cr
JOIN PATRON p ON cr.Patron_ID = p.Patron_ID
JOIN ITEM i ON cr.Item_ID = i.Item_ID
JOIN BOX b ON cr.Box_ID = b.Box_ID
JOIN LOCATION l ON b.Location_ID = l.Location_ID
WHERE cr.Checkout_ID = 'CHK006';

Transaction Safety:

-- If any step fails, rollback example:
START TRANSACTION;
-- ... steps ...
-- Error occurs
ROLLBACK;  -- Undoes all changes

Results

Checkout Record

Checkout_ID	Checkout_DateTime	Return_DateTime	Purpose	Staff_id	Box_ID	Item_ID	Patron_ID
CHK001	2024-12-01 09:30:00	2024-12-01 14:45:00	Research for dissertation on 19th century fashion	2	BOX002	ITEM003	1
CHK002	2024-11-20 10:00:00	2024-11-20 15:30:00	Textile analysis for course material	3	BOX003	ITEM005	2
CHK003	2024-12-12 13:00:00	2024-12-13 16:00:00	Museum exhibition research (currently in study room)	5	BOX006	ITEM011	3
CHK004	2024-12-05 11:15:00	2024-12-05 16:00:00	Costume design reference for theater production	1	BOX007	ITEM013	4
CHK005	2024-11-15 14:30:00	2024-11-15 17:00:00	Cultural heritage documentation project	6	BOX010	ITEM019	5
CHK006	2024-12-13 10:30:00	NULL	Costume design reference	3	BOX004	ITEM007	4

Note: CHK006 shows NULL Return_DateTime, indicating an active checkout (not yet returned)
