📋 Advanced Workflows (Queries 6)

Query 6: Automated Item Return Processing

Scenario: Patron Amanda returns ITEM011 to Librarian Lisa, triggering automated status updates across items and boxes

Business Need: Ensure consistent status updates when items return to the archive, and reduce manual errors

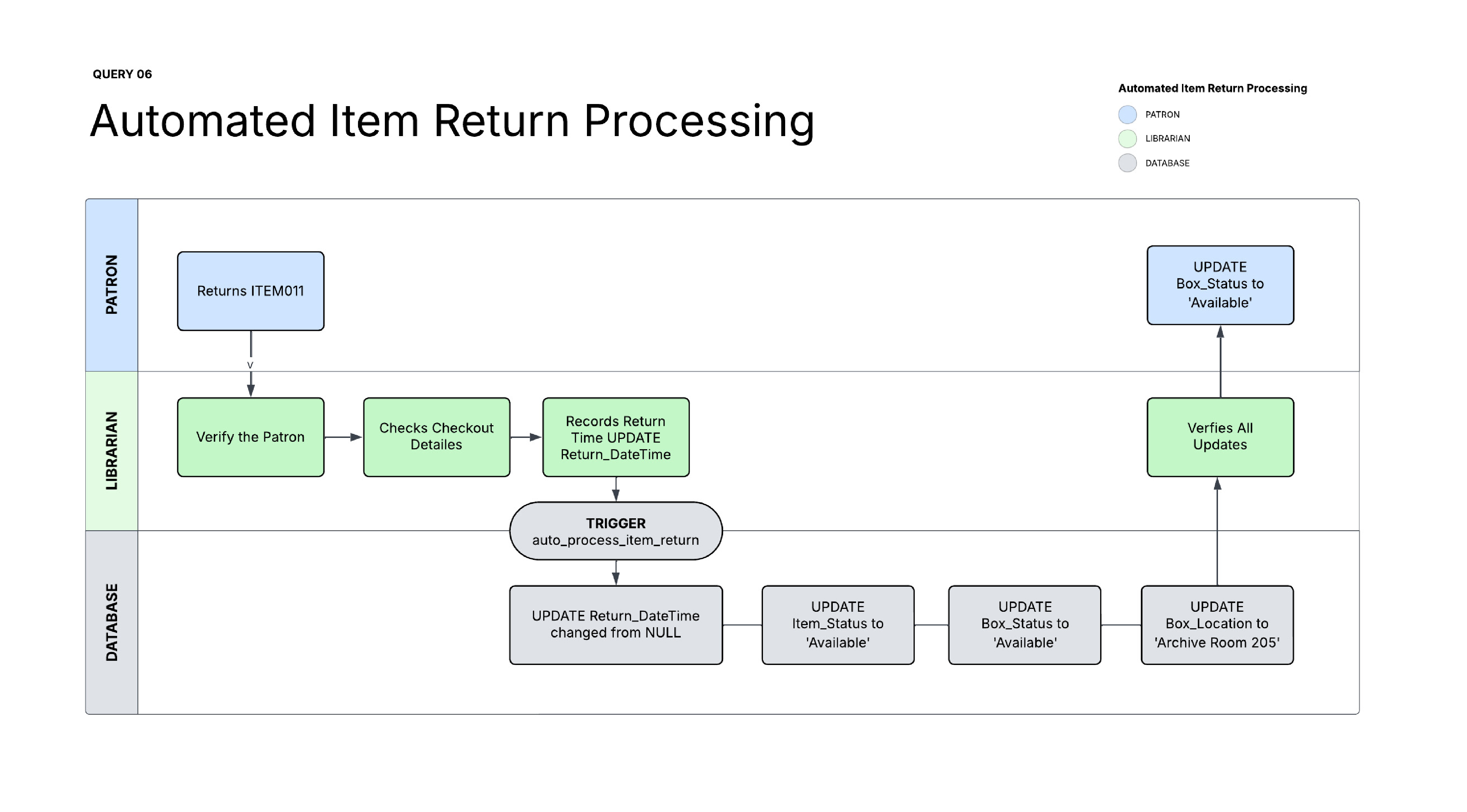

Workflow Diagram

Automation Logic:

• ✅ When Return_DateTime is recorded → Trigger fires
• ✅ Item status: “Unavailable–Checked out” → “Available”
• ✅ Box status: Updates to “Available” when all items are returned
• ✅ Box location: Returns to archive storage automatically

Implementation

Step 1: Check Checkout Details

-- Amanda finished examining ITEM011. Lisa needs to update records.
SELECT
    p.patron_Fname,
    s.staff_Fname,
    s.staff_ID,
    cr.Item_ID,
    cr.Box_ID,
    cr.Checkout_ID
FROM CHECKOUT_RECORD cr
JOIN PATRON p ON CR.Patron_ID = p.Patron_ID
JOIN STAFF s ON CR.Staff_id = s.staff_id
WHERE cr.Item_ID = 'ITEM011';

Step 2: Create Automated Trigger

DELIMITER //
CREATE TRIGGER auto_process_item_return
AFTER UPDATE ON CHECKOUT_RECORD
FOR EACH ROW
BEGIN
    -- Trigger when Return_DateTime changes from NULL to a value
    IF OLD.Return_DateTime IS NULL AND NEW.Return_DateTime IS NOT NULL THEN
        -- Update item status back to Available
        UPDATE ITEM_STATUS_NAME isn
        JOIN ITEM i ON isn.Item_ID = i.Item_ID
        SET isn.Item_Status_Name = 'Available',
            isn.Description = 'Item returned and available in archive storage',
            isn.Staff_id = NEW.Staff_id
        WHERE i.Item_ID = NEW.Item_ID;

        -- Return box to archive storage
        UPDATE BOX
        SET Status_ID = 1,  -- Available
            Location_ID = 3  -- Archive Room 205 Section 2
        WHERE Box_ID = NEW.Box_ID;
    END IF;
END//
DELIMITER ;

Step 3: Execute Return (Trigger Fires Automatically)

-- Update return time - trigger handles the rest
UPDATE CHECKOUT_RECORD
SET Return_DateTime = '2024-12-13 16:00:00'
WHERE Checkout_ID = 'CHK003';

Step 4: Verify Cascading Updates

SELECT
    cr.Checkout_ID,
    cr.Return_DateTime,
    isn.Item_Status_Name,
    bs.Status_Name AS Box_Status,
    l.Room AS Box_Location
FROM CHECKOUT_RECORD cr
JOIN ITEM i ON cr.Item_ID = i.Item_ID
JOIN ITEM_STATUS_NAME isn ON i.Item_ID = isn.Item_ID
JOIN BOX b ON cr.Box_ID = b.Box_ID
JOIN BOX_STATUS bs ON b.Status_ID = bs.Status_ID
JOIN LOCATION l ON b.Location_ID = l.Location_ID
WHERE cr.Checkout_ID = 'CHK003';

Technical Highlights:

• ✅ AFTER UPDATE trigger with conditional logic
• ✅ OLD vs NEW row comparison
• ✅ Cascading updates across 3 tables
• ✅ Maintains data consistency automatically
